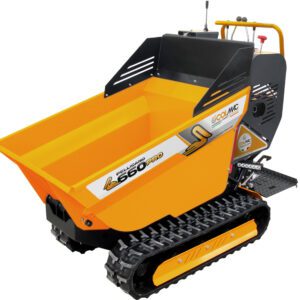

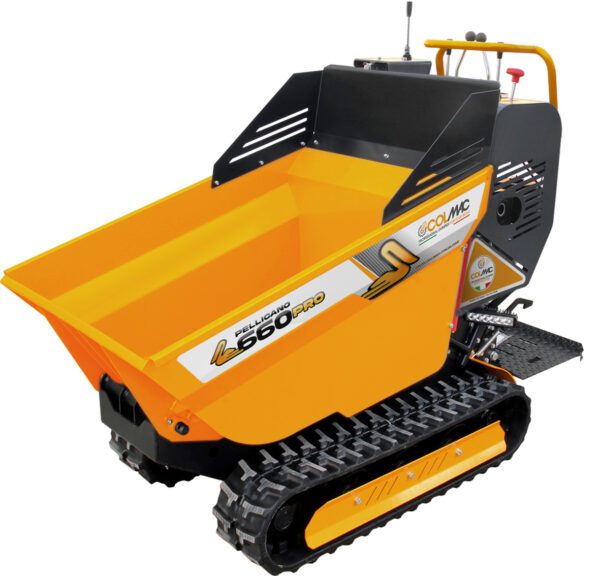

Mini Dumper Pellicano 660 Pro
7.750€ 9.135€ Vat included
PELLICANO 660 PRO has a loading capacity of 600 Kg.
The main feature that distinguishes this machine is the hydraulic system composed of a type 2 pump, a three-way flow divider, two 250cc orbital hydraulic motors. Thanks to this system you have two speeds (2km/h and 3.6km/h) and the possibility of operating the self-loading shovel, tipping or concrete mixer, while moving forward.
Bank Transfer
Network Installment - Sella Personal Trading
PayPal
Credit Card
Completa il modulo di richiesta informazioni
Ti ricontatteremo noi!
Width 72 cm
Dumper
Max payload 600 Kg
Hydraulic tipping
Max slope 30%
Gasoline
2 speed
Honda GX 270
DASHBOARD
Advance • Steering • Shovel movement • Body overturning • Concrete mixer drive (clockwise and anticlockwise)
SPEED SELECTOR E CONCRETE MIXER ENABLING
Double speed: 2 km/h – 3,6 km/h
LEVER FOR CONCRETE MIXER MANAGEMENT
The lever in question gives the possibility the user to manage the Mix20Fast concrete mixer.
COMPONENTS AND HYDRAULIC SYSTEM
Pump – Cylinder – Tubes – Control valves
TRACKS – TRACK TENSIONERS
The recovery springs mounted on the tensioning system prevent tearing or damaging the track and the transmission components.
EXTERNAL PROTECTIONS
A further protection is given by strong external barriers, these cover the rollers thus avoiding the intrusion of stones or inert foreign material.
Technical Data Sheet
Engine
Honda GX270
6,3 kw – 8,4 Cv – 3600 rpm/min
Engine type
4 Stroke – single cylinder
Fuel tank capacity
5,3 Lt petrol
Starting system
Manual or Electric (optional)
Transmission
Hydraulic
Advancement speed
2 Speed – 2 km/h – 3.6 km/h
Hydraulic motors
250 cc orbital
1 Hydraulic pumps
Type 2 + 3-way flow divider
Max pressure
180 bar
Working pressure
150 bar
Flow rate pumps
31,5 Lt/min a 3000 rpm
Oil tank
14 Lt
Safety system
Overcenter
Inclination
Max 30% (17°)
Load capacity
600 kg flat (350 kg inclined plane)
Tipping system
Hydraulic
Total dimensions
150 x 124 x 83,3 cm
Net weight
425 Kg
Track dimensions
180 mm width 60 mm pitch • 38 link
Track tension adjustment
Tension system with springs semi-automatic
Track rollers
3
1 Double speed selector
2 Mix25Fast management lever
3 Control panel
4 Support handle
5 Honda GX270 engine
6 Operator platform
7 Track guard
8 Hydraulic Pump
9 Track tensioner
10 Plug and Play system
11 250 Lt concrete mixer
12 Self-loading shovel
Honda GX270 6.3 Kw is the engine chosen for this minidumper.
Mix25Fast is the perfect accessory for mixing and transporting building mixes (max 250 Lt). The mixing operation can continue even while moving, reducing manpower and time.
Dumper is the ideal equipment for transporting inert material (m3 0.30), but also liquids (0.21m3) on the flat.
Agricultural/Forestry is the body with sides that can be opened at 90°, 35cm high, in addition to the practical tubular over sides, adjustable in height for the transport of bulky loads.
Documentazione tecnica
| File | Description | File size | Downloads |
|---|---|---|---|
Catalogo Pellicano 560 660PRO IT_EN 2025
|
13 MB | 205 | |
|
Catalogo Pellicano 560 660PRO FR_EN 2025
|
15 MB | 205 |
| Body Type | Agricultural with opening sides, Dumper with self-loading shovel, Dumper without self-loading shovel |
|---|---|
| Kit Betoniera Mix 25 Fast | With, Without |
