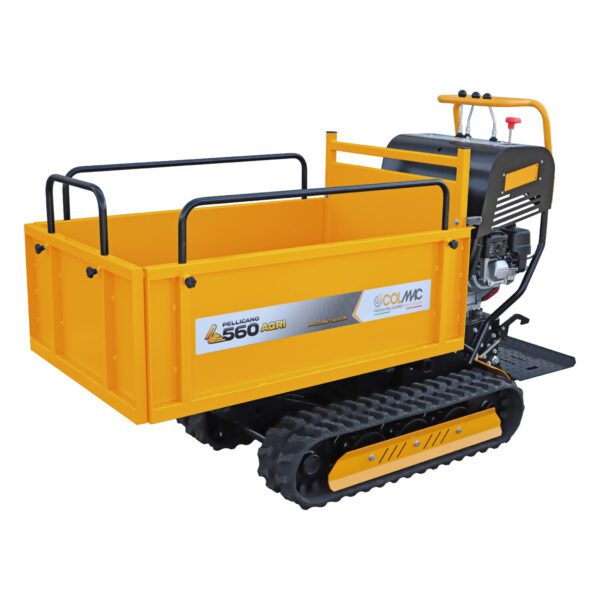

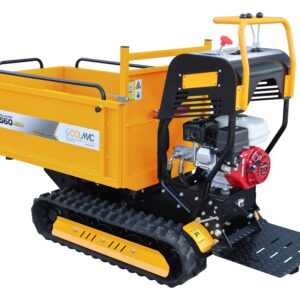

Mini Dumper Pellicano 560 Pro Agri – Openable Body
5.150€
Machines for professional use in construction and renovation, but also very popular in agriculture, forestry and gardening. They are able to load and transport materials of various nature in very narrow places, where often other machines are not able to operate, given the overall dimensions and high weights.
Bank Transfer
Network Installment - Sella Personal Trading
PayPal
Credit Card
Completa il modulo di richiesta informazioni
Ti ricontatteremo noi!
Width 72 cm
Openable body
Max payload 500 Kg
Hydraulic tipping
Max slope 30%
Gasoline
1 speed
Honda GX 200
DASHBOARD OF MINI DUMPER WITH OPENABLE BODY
- Starting
- Advancing
- Steering Tipping
- Hour meter
- The control panel, located in front of the operator, is intuitively presented.
TRACKS – TRACK TENSIONERS
The recovery springs mounted on the tensioning system prevent tearing or damaging the track and the transmission components. 3 support rollers, maximum slope of 30%.
EXTERNAL PROTECTIONS
A further protection is given by strong external barriers, these cover the rollers thus avoiding the intrusion of stones or inert foreign material.
COMPONENTS and HYDRAULIC SYSTEM
Pump • Cylinder • Pipes • Control valves • Hydraulic pump • 2 Type 1 gear pumps • Oil tank 14Lt • Security valve • Overcenter Security system
OPERATOR PLATFORM
Operator’s footboard standard and foldable limiting the encumbrance to a minimum.
ELECTRIC STARTER KIT (OPTIONAL)
Allows a start easy and fast simply turning the KEY.
LED LIGHTS KIT(OPTIONAL)
3 high brightness led headlights.
Technical Data Sheet
Engine
Honda GX200
4,3 kw – 5,8 Cv – 3600 rpm/min
Loncin 208
Loncin KM 178
Yanmar L70
Engine type
4 Stroke – single cylinder
Fuel tank capacity
3,1 Lt petrol
Starting system
Manual or Electric (optional)
Transmission
Hydraulic
Advancement speed
0 km/h – 2,5 km/h
Hydraulic motors
200 cc orbital
2 Hydraulic pumps
Type 1
Max pressure
180 bar
Working pressure
180 bar
Flow rate pumps
9,3 Lt/min x2 (3000 rpm)
Oil tank
14 Lt
Safety system
Overcenter
Inclination
Max 30% (17°)
Load capacity
500 kg flat (350 kg inclined plane)
Tipping system
Hydraulic
Total dimensions
150 x 124 x 83,3 cm
Net weight
340 kg
Track dimensions
180 mm width 60 mm pitch • 38 link
Track tension adjustment
Tension system with springs semi-automatic
Track rollers
3
1 Support handle
2 Control panel
3 Engine
4 Operator platform
5 Hydraulic motors
6 Track guard
7 Track tensioner
8 Hydraulic oil tank
9 2 hydraulic pumps
10 Overcenter safety valves
11 Self-loading shovel
The main features that distinguish it, besides the accurate aesthetic “design” and the sturdiness of the reinforced steel frame, are:
- Hydraulic orbital motors of reinforced type, with axial load of about 1000 Kg, reinforced bearings and oil seals, flange with 4 holes and 32mm diameter shaft, 200 cubic cm displacement.
- Dumper body and loading pallet reinforced for heavy duty work, equipped with double hydraulic cylinder.
- Double parallel distributor.
