Tracked Wheelbarrow Tucano 350e
3.876,00€ 4.560,00€ Vat included

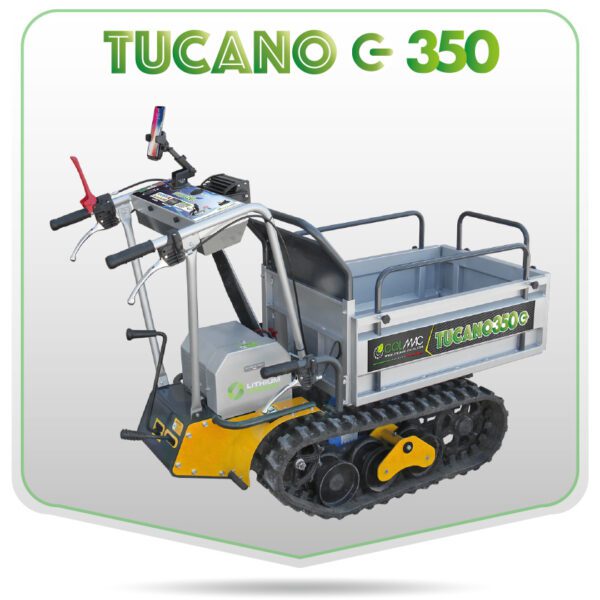

The ELECTRIC TRACKED WHEELBARROW TUCANO 350e can be used in closed environments, as ZERO EMISSIONS and absolutely silent.
Maximum capacity 500kg. It can carry any kind of material, lightening and facilitating considerably the work of the user. Its versatility makes it necessary in various sectors, such as agriculture, breeding, gardening, forestry, construction and tourism.
Out of stock
Completa il modulo di richiesta informazioni
Ti ricontatteremo noi!
Width 63 cm
Openable body
Max payload 500 Kg
Manual assisted
Max slope 30%
8 speed
Power supply battery
2 tilting rollers
CONTROL PANEL
Machine ignition
Led lights on
Battery level display
Smartphone holder
2 USB sockets
Motor speed selector
Motor overload indicator
POWERFUL LED SPOTLIGHT
To work safely even in situations of poor visibility
LITHIUM ION BATTERY
48V 60 Ah
± 10h working time, recharge in ± 4.3h (e350)
CRAWLER WITH 4 ROLLERS
(Tucano 350 with 3 rollers)
2 rollers with tilting system, necessary to facilitate the overcoming of obstacles.
TRACKS – TRACK TENSIONERS
The recovery springs mounted on the tensioning system prevent tearing or damaging the track and the transmission components. The minidumper is able to move loads even on rough, uneven or inclined terrain up to a maximum slope of 30%.
8-SPEED TRANSMISSION
WITH SOFT START E STOP SYSTEM
thanks to the 6 forward gears and 2 reverse gears the operator can choose the right speed in every situation. The 2 levers on the gearbox allow a quick and comfortable insertion of the desired gear.
Technical Data Sheet
Engine
Electric 1 Kw
Lithium Battery 48V 60 Ah
(autonomy ± 10h – recharge time ± 4,5h)
Starting system
Electric with Soft Start and Stop system
Battery weight
18 Kg
Gear box
6 Forward (0,5 / 0,8 / 1,3 / 1,8 / 3 / 4,9 Km/h)
2 Backward (0,6 / 2,3 Km/h)
Load capacity
350 kg flat (250 kg inclined plane)
Surmountable slope
35%
Net weight
170 KG
Total dimensions
166x63x99 cm
Body dimension
82x54x29,5 cm
Tipping system
GAS PISTON
(manual assisted)
Track dimensions
180 mm width 60 mm pitch • 37 link
Safety system
lever with automatic brake
Track tension adjustment
Tension system with springs semi-automatic
Track rollers
3 (of which 2 overhead)
1 Manual tipping
2 Engine overload indicator light
3 Smartphone port
4 USB sockets
5 Led lights control
6 Ignition
7 Hour meter
8 Electric motor speed selector
9 Clutch
10 Gearshift
11 Slow and fast gear selector
12 Electric motor
13 Lithium battery
14 Tilting rollers
Work design, carpentry, components, painting and nal assemblyare performed by the skilled Italian workforce, which has always distinguished itself throughout the world.
Convenient and intuitive.
By pressing the start button, the automatic SOFT START and STOP system starts the machine in a progressive way and without jerks. It is also equipped with the lever safety system with automatic brake, this system immobilizes the machine even on inclined planes.
